Taidacent 8-24V Non Contact Level Switch Capacitive Type Level Sensor External Liquid Sensor Water Level Detector Sensor Switch for Smart Toilets Water Tower Water Purifiers

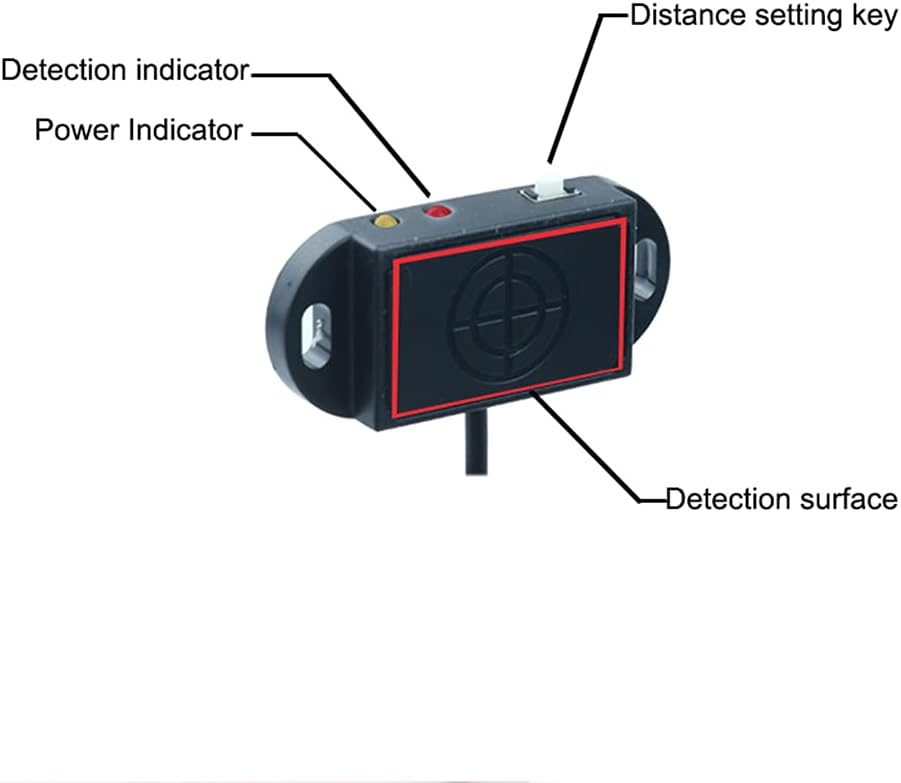

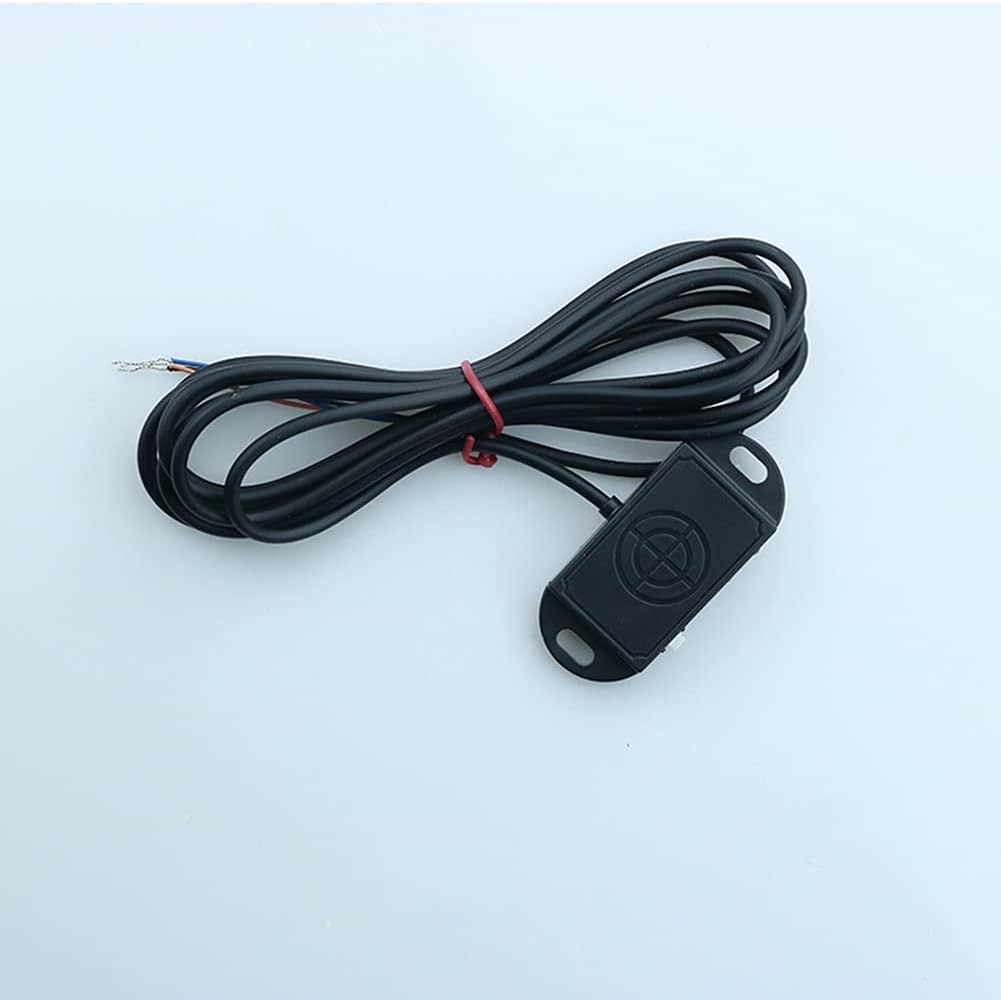

Self-calibrating flat non-contact liquid level sensor Detection distance: ≤20mm Detectable object: medium with certain conductivity (such as 0-100C water, metal conductor, etc.) Power supply voltage: DC8-24V Working current: 15mA or less (at DC24V) Control output Switching capacity: NPN open collector, maximum 100mA (at DC24V) Residual voltage: 1. 0V or less (when load current is 100mA, wire length is 2m) Indicator light: power indicator (green), detection indicator (red) Connection method: lead-out type (standard lead length 2m) Material: shell, detection surface ABS flame retardant grade 94V0 Flat capacitance type Can be widely used in smart toilets, water tower water purifiers, soymilk machines. Liquid level controllers such as vegetable washing machines and humidifiers. Product instructions One. Used to detect non-liquid conductive objects 1.Face the detection surface of the sensor to the object to be detected, and fix the sensor at a suitable detection position; 2. Adjust the sensing position of the sensed object to be detected, press the button to perform position calibration, when the red indicator light flashes three times, the calibration is completed. Two. Used to detect conductive liquid in the container 1. Adjust the height of the liquid level that needs to be sensed; 2. Face the detection surface of the sensor to the liquid to be detected, and fix the sensor to the detected liquid surface position; 3. Press the button to calibrate the liquid level. When the red indicator light flashes 3 times, the calibration is completed.

• Detection distance (button to adjust distance): 0-20mm button press once to calibrate (red indicator flashes 3 times to complete calibration)
• Output form: DC 3-wire NPN
• Action mode: no induction-high impedance state; induction-low level
• Capacitive Type Level Sensor can be widely used in liquid level controllers such as smart toilets, water towers, water purifiers, soymilk machines, vegetable washing machines, humidifiers, etc.
• Non Contact Level Switch Self-calibrating flat non-contact liquid level sensor
