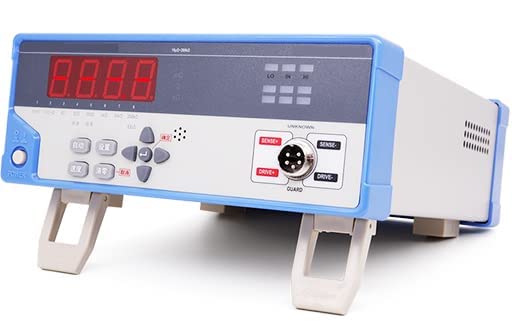

Micro Ohm Meter DC Low Resistance Tester Low Ohm Meter Tester DC Low Resistance Testing Instrument with Measurement Range10μΩ to 200kΩ Accuracy 0.2% 0.8 inch LED Display

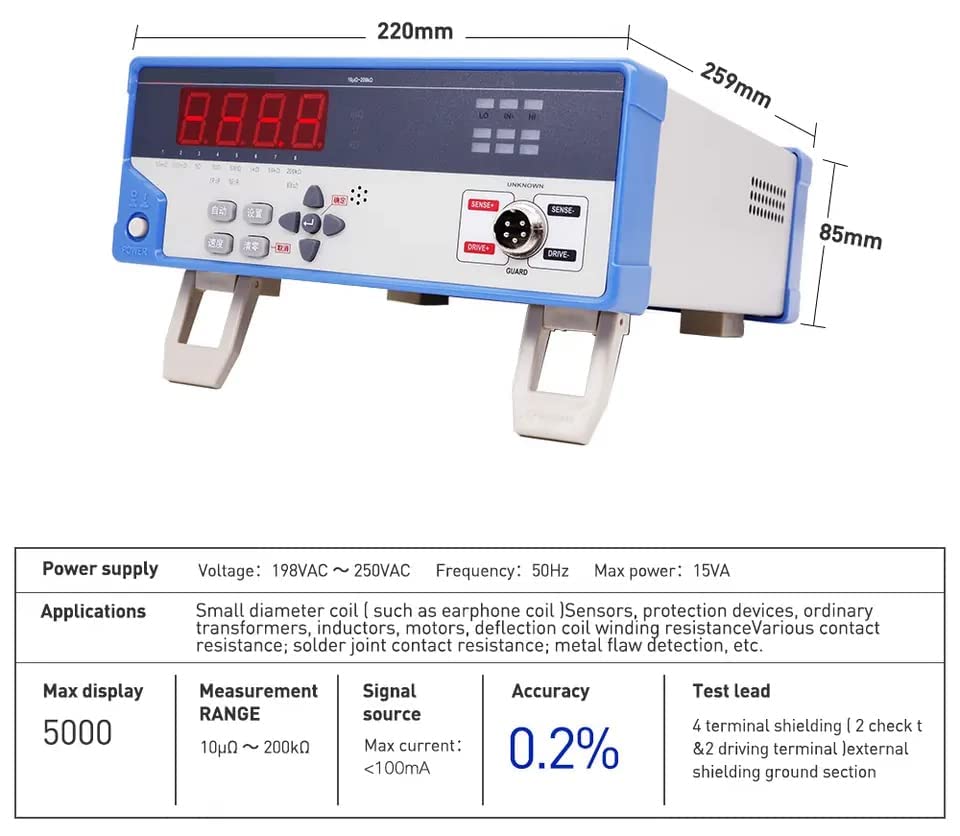

YFYIQI Micro Ohm Meter DC Low Resistance Tester Low Ohm Meter Tester DC Low Resistance Testing Instrument with Measurement Range10μΩ to 200kΩ Accuracy 0.2% 0.8 inch LED Display Features: 0.8 inches big font, highlight LED display Automatic test and provide manual range function Comparator function Short-circuit Zero-Adjust for each range Accuracy: 0.2% Max Reading: 5000 Automatic and manual with 8 ranges Measurement range: 01mΩ～200.0kΩ Fast:10 times/second, Slow:3 times/second Specifications: Parameter:DCR Accuracy:0.2% Measurement Range:10μΩ～200kΩ Measurement current:I-Max: <100mA (micro current test, compatible with Hioki 3540) Range:8 ranges, auto & manual Speed:Slow: 3 times/s, Fast: 10 times/s Display:show Display:Max5000 Adjustment：short-circuit reset full range Comparator：OFF/PASS/HI/LO Trigger：Internal Method：4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section Power Supply：V: 198VAC～240VAC Fre：50Hz Power：15VA Dimension & Weight：220mm×85mm×259mm / 2kg Accessories：AT503 Kelvin test clip Other Functions：0.8 inch LED dispaly

• It is an economical type DC low resistance tester, it has a wide test range: 0.01mΩ～200.0kΩ, and the maximum display 5000. At the same time, the test speed is improved: the fastest can reach 10 times per second and the reading is stable. The improved automatic range test circuit and the fully electronic switch design can instantly switch from the highest range to the lowest range.

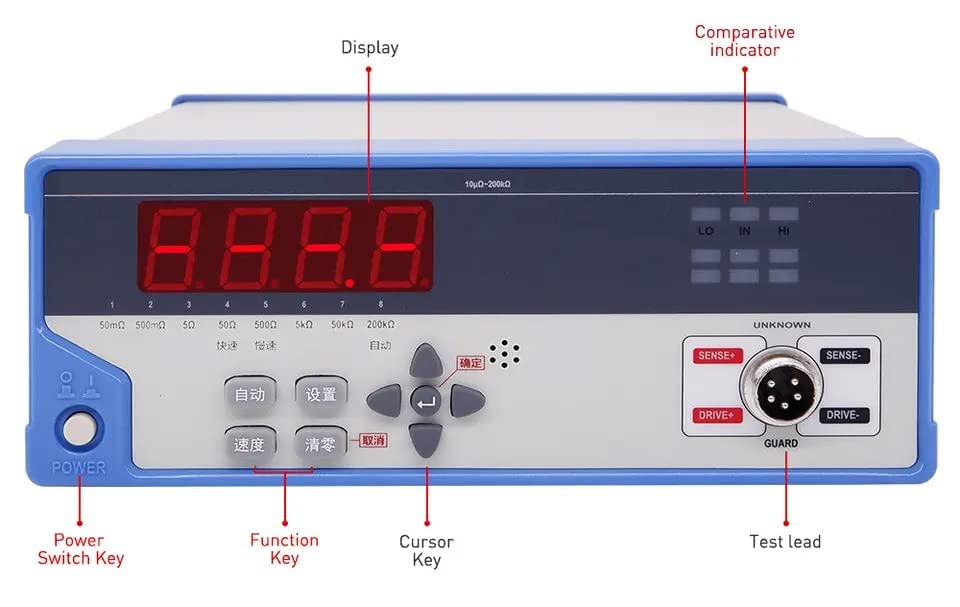

• It uses 0.8-inch high-brightness digital tube display, all Chinese keys and indicators, so that the instrument display is clearer, and the fool-like operation interface is also easy to use.
• It uses superior low-current test characteristics, and is especially suitable for resistances that are sensitive to test current, such as platinum thermal resistance, copper thermal resistance, PTC ceramic thermal resistance, alloy wire DC resistance, DC resistance of current protection devices, etc.
• It is also suitable for measuring various contact resistances; winding resistance of transformers, inductors, motors, deflection coils; wire resistance; metal riveting resistance of vehicles, ships, and airplanes; printed plate lines and hole resistance, etc.
• Measurement current:I-Max: <100mA (micro current test, compatible with Hioki 3540)
